Single Fiber SC 20KM
Data Rate:self-adaptive 10/100Mbps
Fiber Distance:20km
Optic interface:1 SC Port
Power Supply:DC5V 1A output
Power Input:3W
Type:Fiber Optic Transceivers
Wavelength:1310/1550nm
Fiber Type:Single Fiber Single Mode
Ethernet interface:1 10/100Mbps RJ45 port
Temperature:0~50℃ Operating; -40~70℃ Storage
Application:FTTH FTTx FTTB Network
Inquiry

Product Description

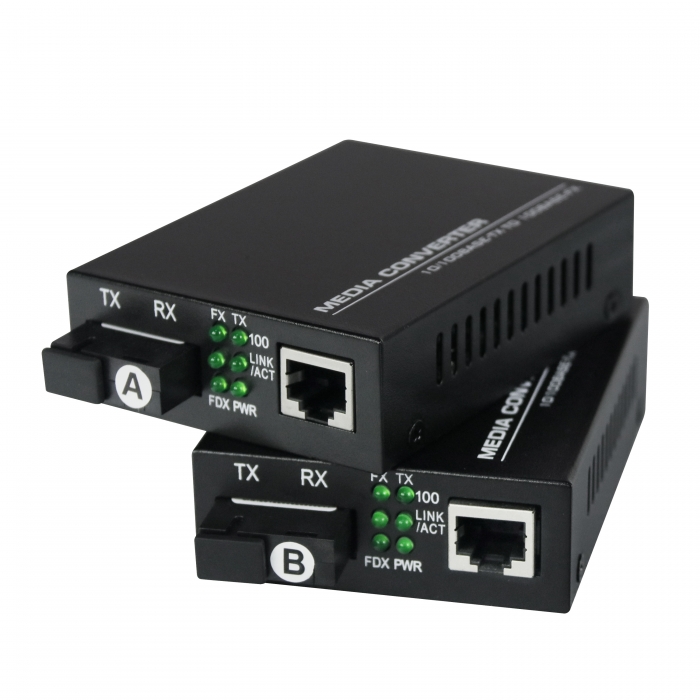

100Mbps Fiber Media Converter with 10/100M single mode Single Fiber Converter is the conversion equipment of Ethernet optical-electronic signals between 10/100M UTP interface (TX) and 100M Fiber interface (FX). The traditional 10/100M Ethernet can be extended to the distance of 100km through Single Optical Fiber link. The performance and quality of the products are excellent because of adopting latest IC from Taiwan. It must be used in couples, because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for end-users to observe the conditions of network. The Series product with reasonable price is especially designed for network end-users. There are also many other advantages such as isolation protection, good data security, working stability and easy maintenance.
