Product Description

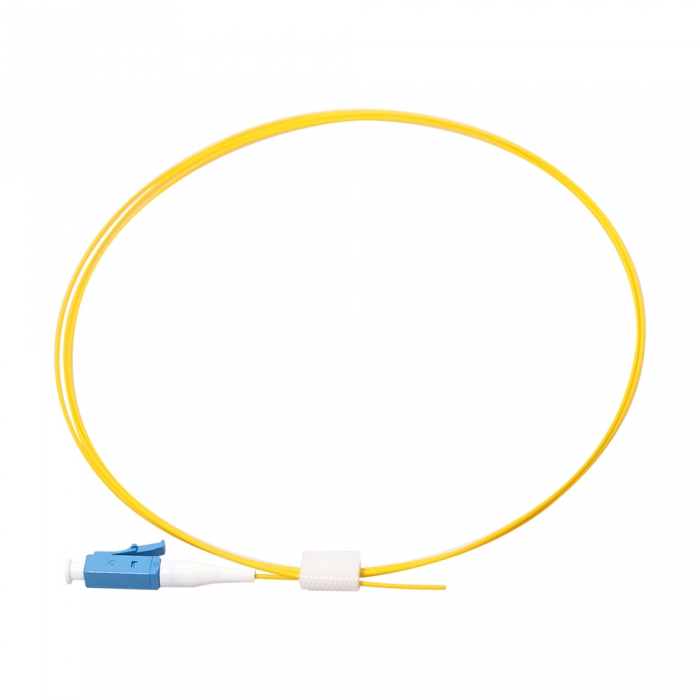

Factory Customization SC FC LC ST Single/Multi Mode Optical Fiber Pigtail 0.9mm fiber optic pigtail
*SC, LC, FC, MU, ST, MT-RJ, E2000 connector available;
*Superior qualified standard PC, APC, UPC, SPC polishing;
*φ0.9mm, φ2.0mm, φ3.0mm cable optional;
*Single mode (9125) or multi mode (50/125 or 62.5/125) fiber available;
*Available in fiber bunch, ribbon fan-out, pigtail available;
*Simplex and duplex connector available;
*Low IL and High RL;
*Good exchange ability and good durability;
*Customized specifications are welcomed.
Specification
Fiber Cable Type | G652D/G655/G657A1/G657A2 | OM1 | OM2/OM3/OM4 | ||
Item | SM(Single Mode) | MM(Multimode) | |||
Fiber Diameter (um) | 9/125 | 62.5/125 | 50/125 | ||
Cable OD (mm) | 0.9/1.6/1.8/2.0/2.4/3.0 | ||||
Endface Type | PC | UPC | APC | UPC | UPC |
Typical Insertion Loss (dB) | <0.2 | <0.15 | <0.2 | <0.1 | <0.1 |
Return Loss (dB) | >45 | >50 | >60 | / | |
Insert-pull Test (dB) | <0.2 | <0.3 | <0.15 | ||
Interchangeability (dB) | <0.1 | <0.15 | <0.1 | ||
Anti-tensile Force (N) | >70 | ||||
Temperature Range (℃) | -40~+80 | ||||
