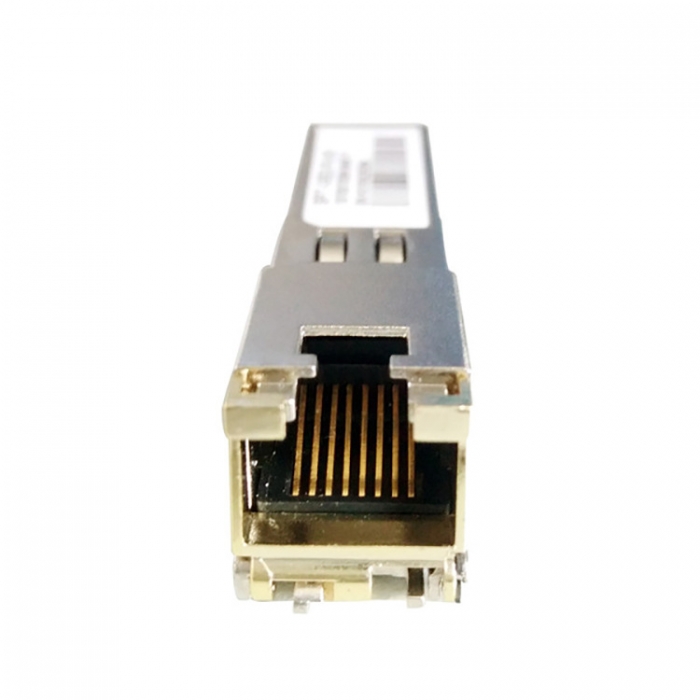

1.25G RJ45 SFP
| Type: | SFP-T ( small form pluggable) |
| Transfer Distance: | 100M |
| Data Rate (max): | 1.25Gbps |
| Diagnostics: | Digital |
| Connector: | RJ45 connector |
| Compatible switch: | CISCO, ZTE, HUAWEI , MIKROTIK , etc |
| Application: | Gigabit Ethernet/Fiber Channel |
| Voltage Supply: | 3.3V |
| Warranty: | 3 Years |
| Certificate: | CE ROSH ISO |
| Inquiry |
Product Description
*Up to 1.25Gb/s bi-directional data links
*Hot-pluggable SFP footprint
*Extended case temperature range (0°C to +70°C )
*Fully metallic enclosure for low EMI
*Low power dissipation (1.05 W typical)
*Compact RJ-45 connector assembly
*Access to physical layer IC via 2-wire serial bus
*1000 BASE-T operation in host systems with SERDES interface
*10/100/1000Mbps compliant in host systems with SGMII interface
